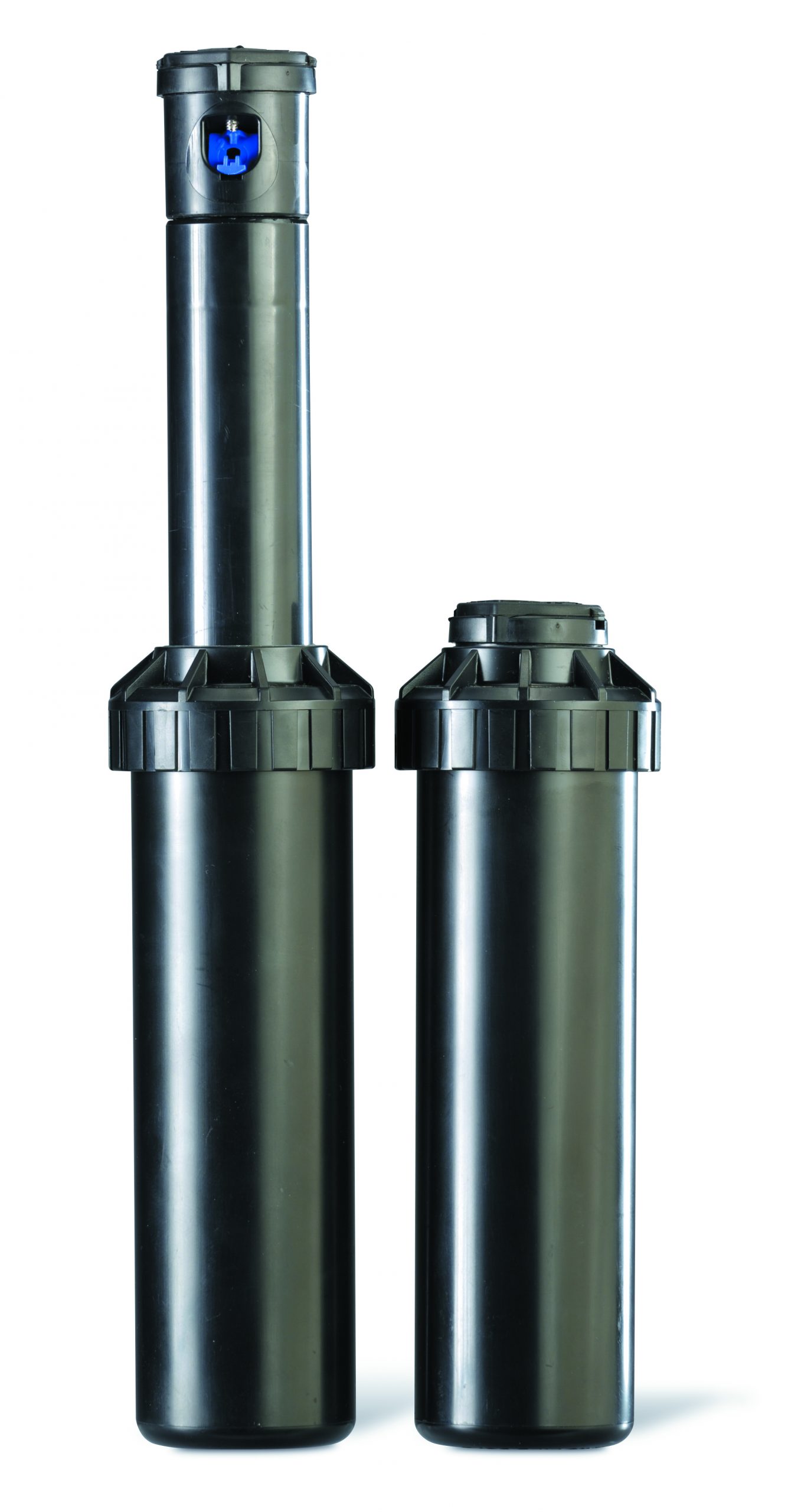

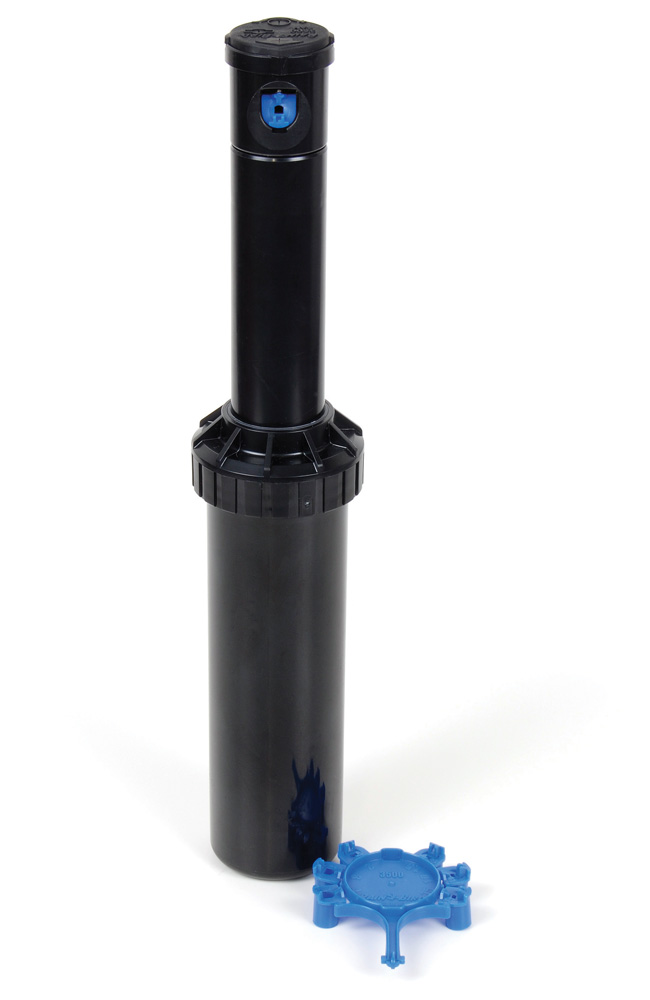

3504 SERIES ROTORS
€13.50
Mid-range Gear-drive Rotor
Dimensions
-Pop-up height: 10.2 cm
-Overall body height: 16.8 cm
-Exposed surface diameter: 2.9 cm
-Note: pop-up height measured from cover to center of nozzle. Overall body height is measured popped down
Περιγραφή
Specifications
-Radius: 4.6-10.7 m
-Radius with radius reduction screw: down to 2.9 m
-Pressure: 1.7-3.8 bar
-Flow Rate: 0.12-1.04 m3/h
-1/2” (15/21) female bottom threaded inlet
-Arc adjustment: 40°-360°
